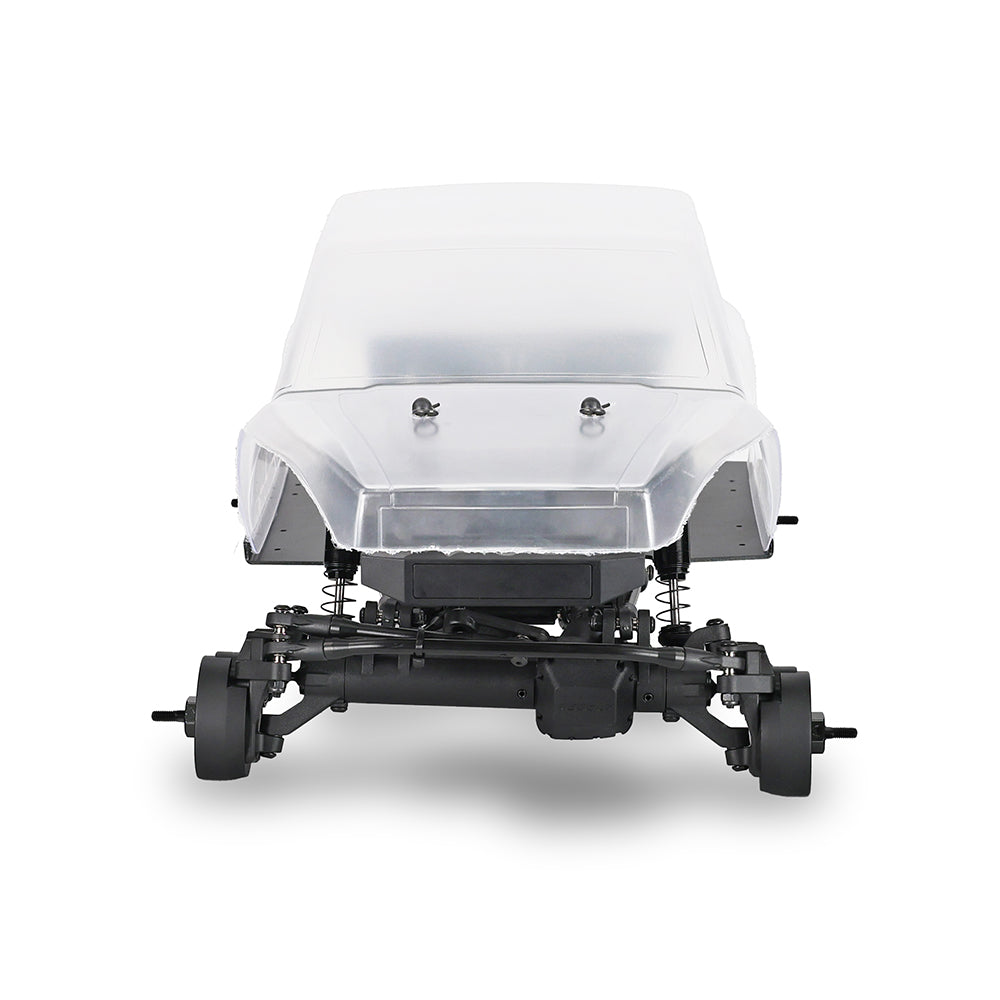

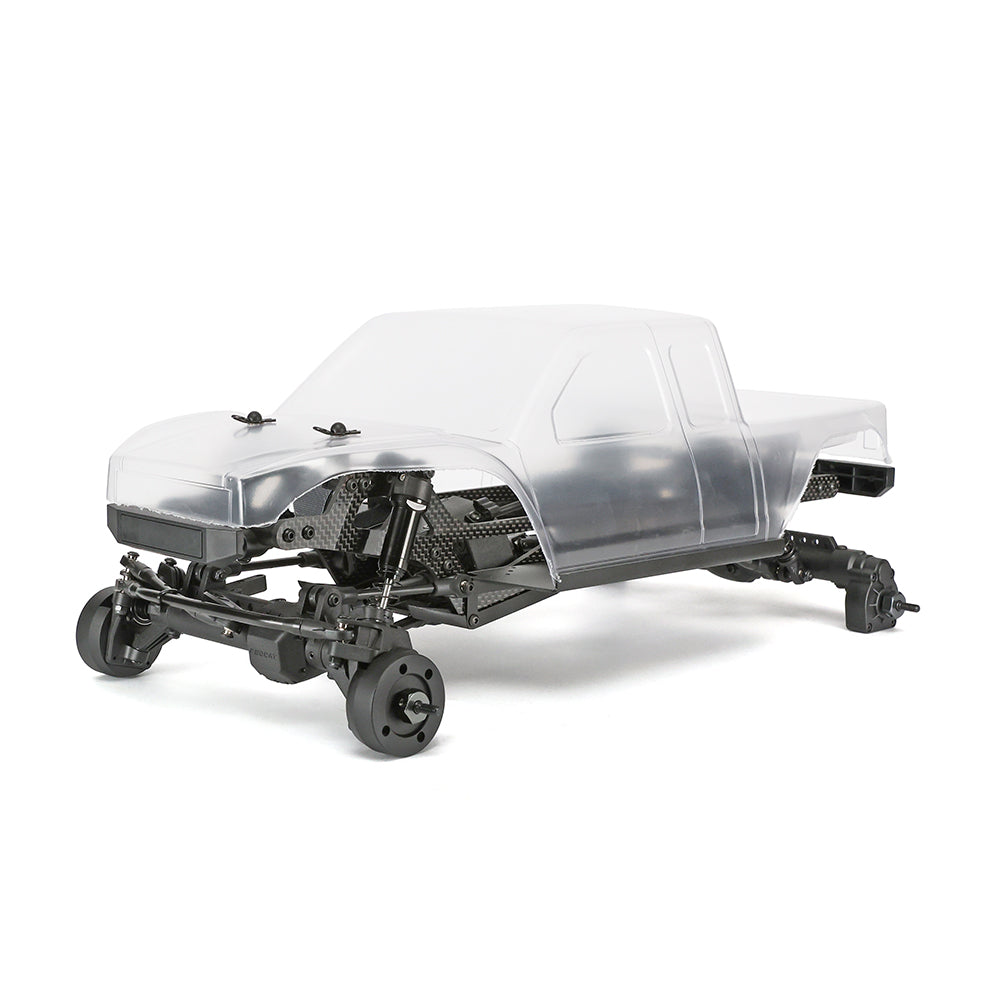

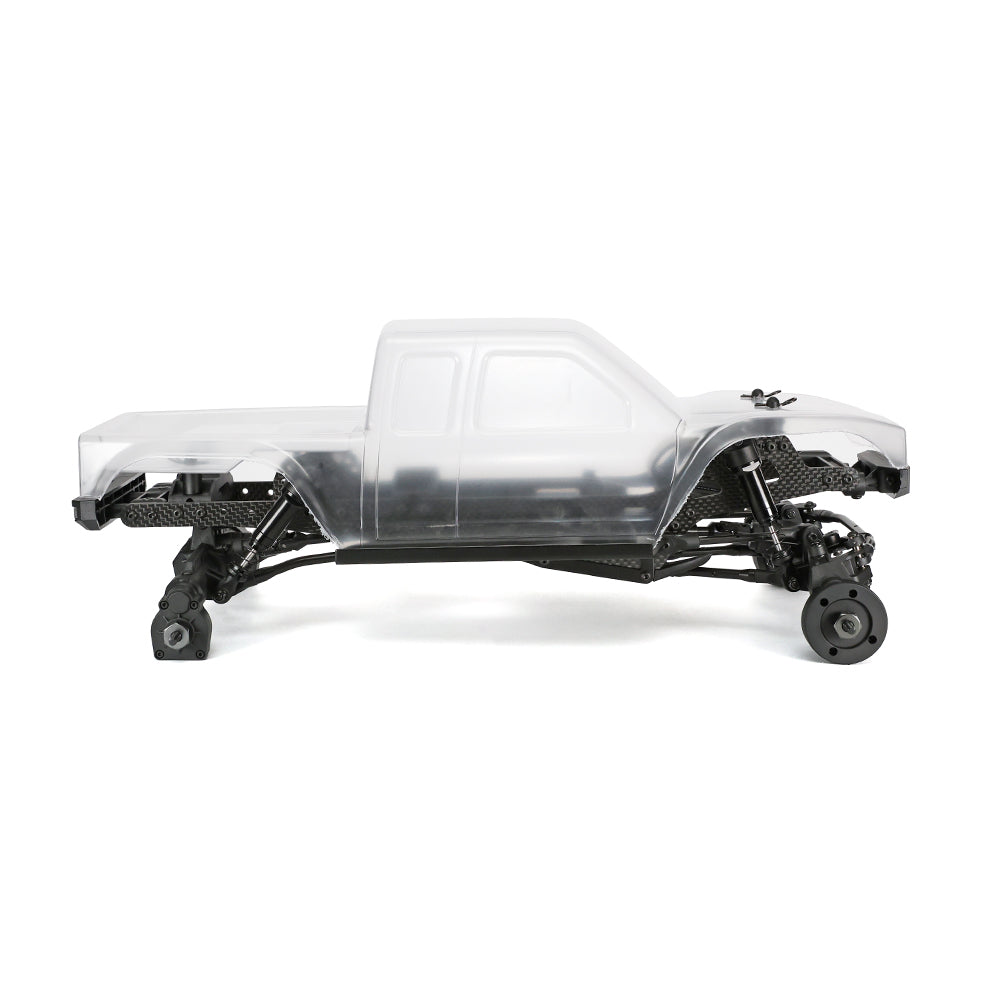

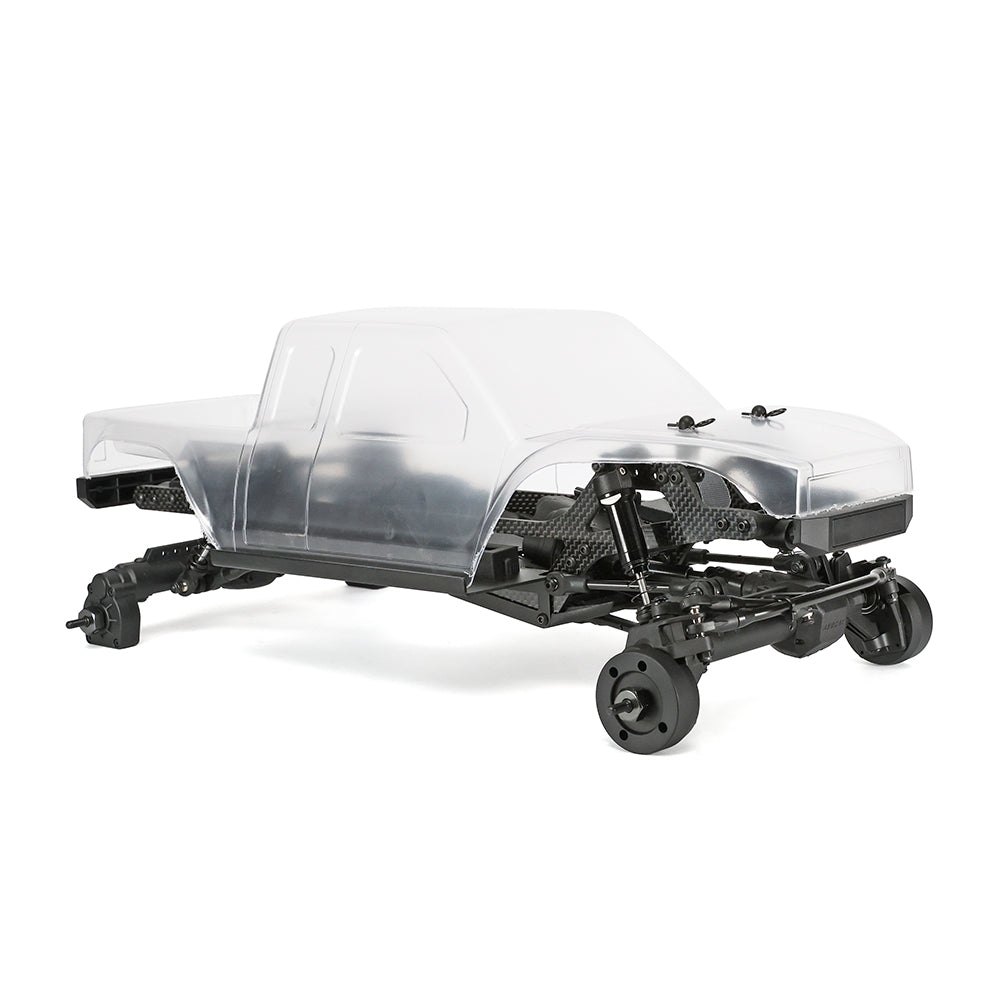

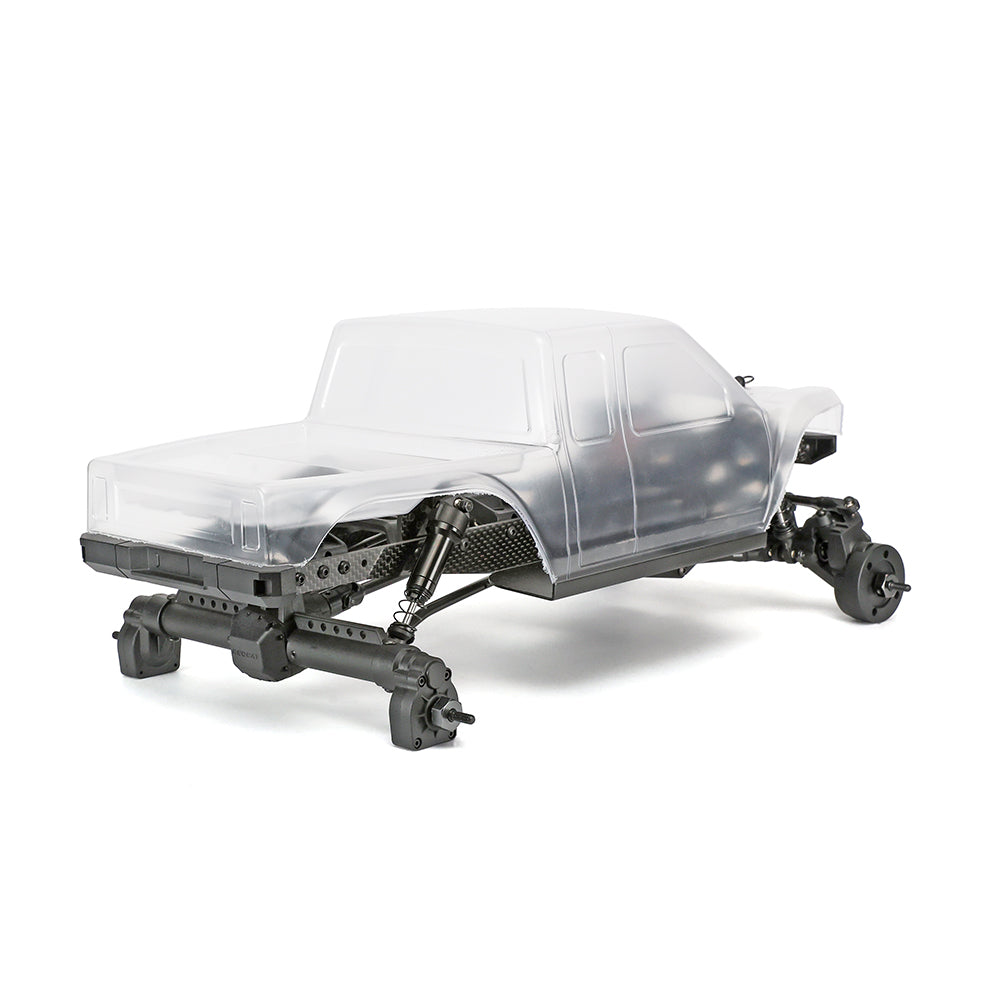

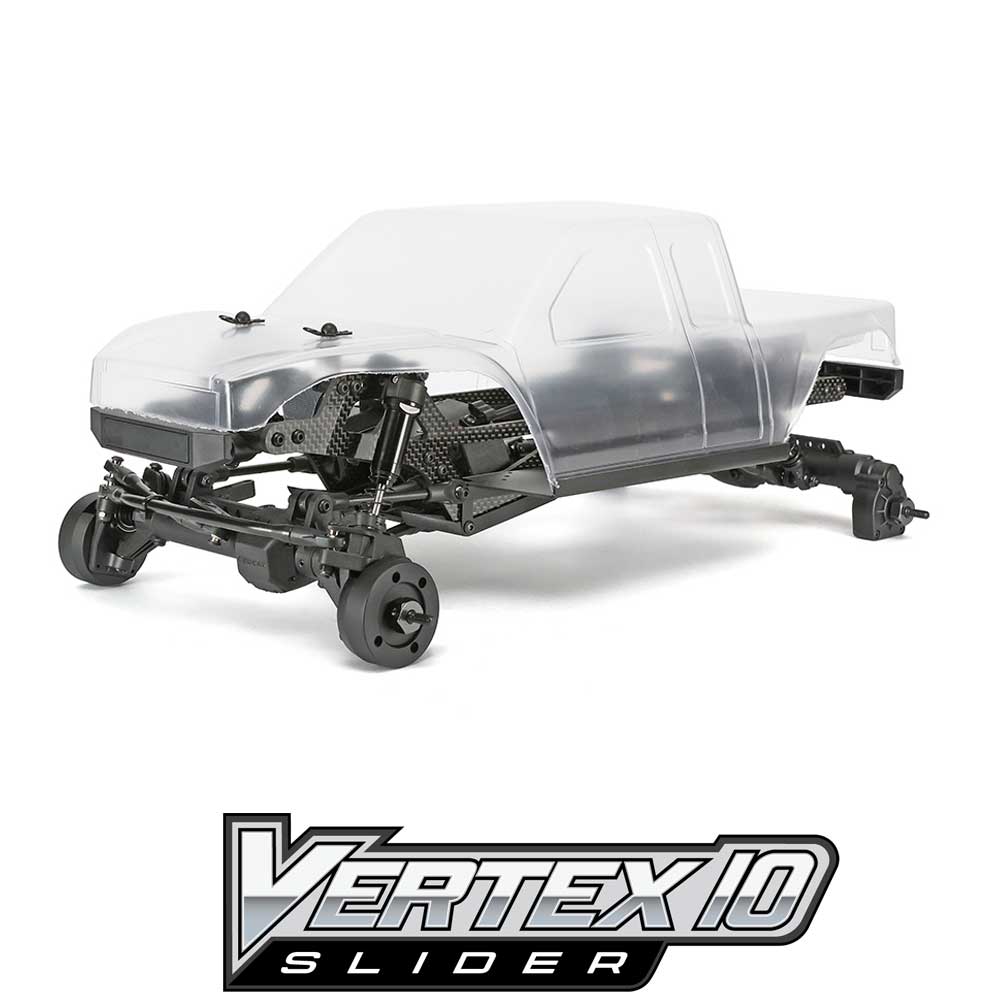

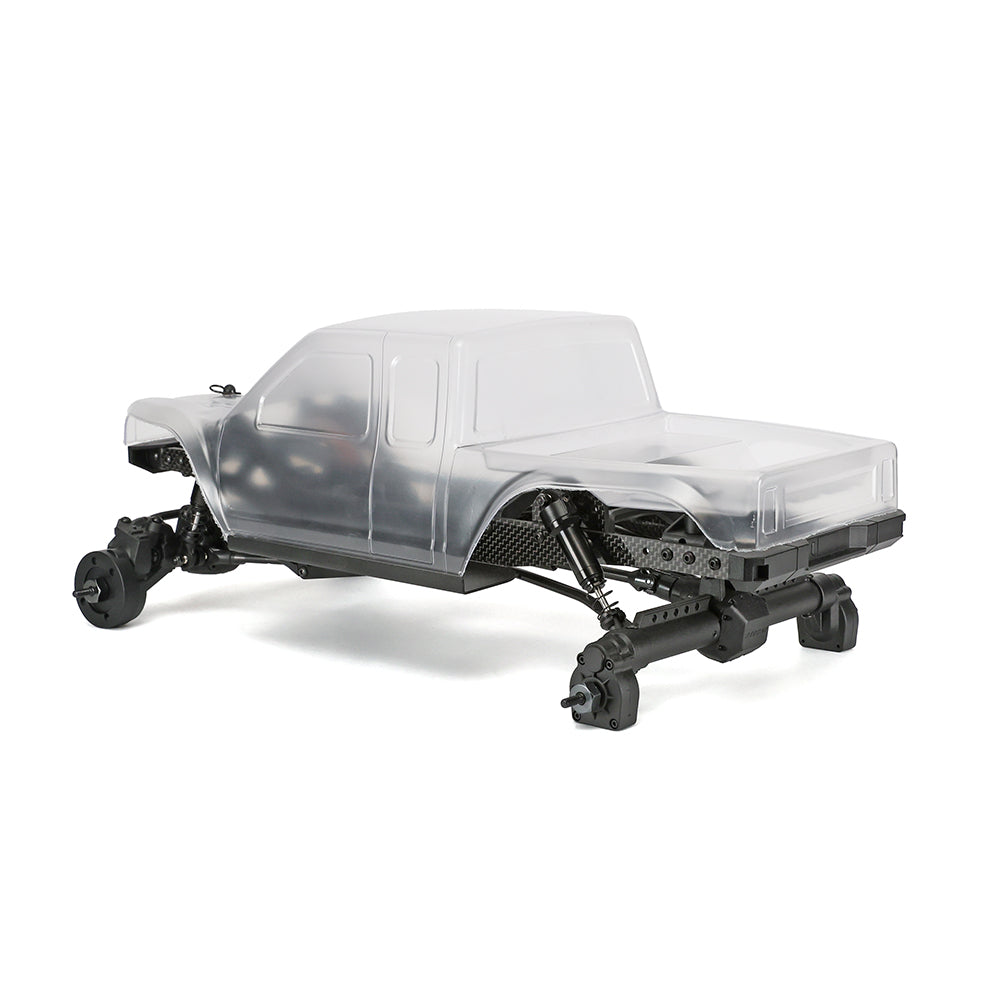

Redcat Vertex-10 Slider - 1:10 Scale Pre-assembled Chassis Kit

The Redcat Vertex‑10 Slider is a precision‑built crawler platform designed for builders who demand performance, customization, and control. With its high‑clearance portal axles, carbon‑fiber components, and low‑profile body, the Vertex‑10 Slider delivers premium capability and confidence across rugged terrain. Its motor‑forward configuration, high‑clearance rear links, and 10‑degree skid angle enhance breakover performance and off‑road agility, while multiple battery mounting options allow for fine‑tuned balance and pack fitment.

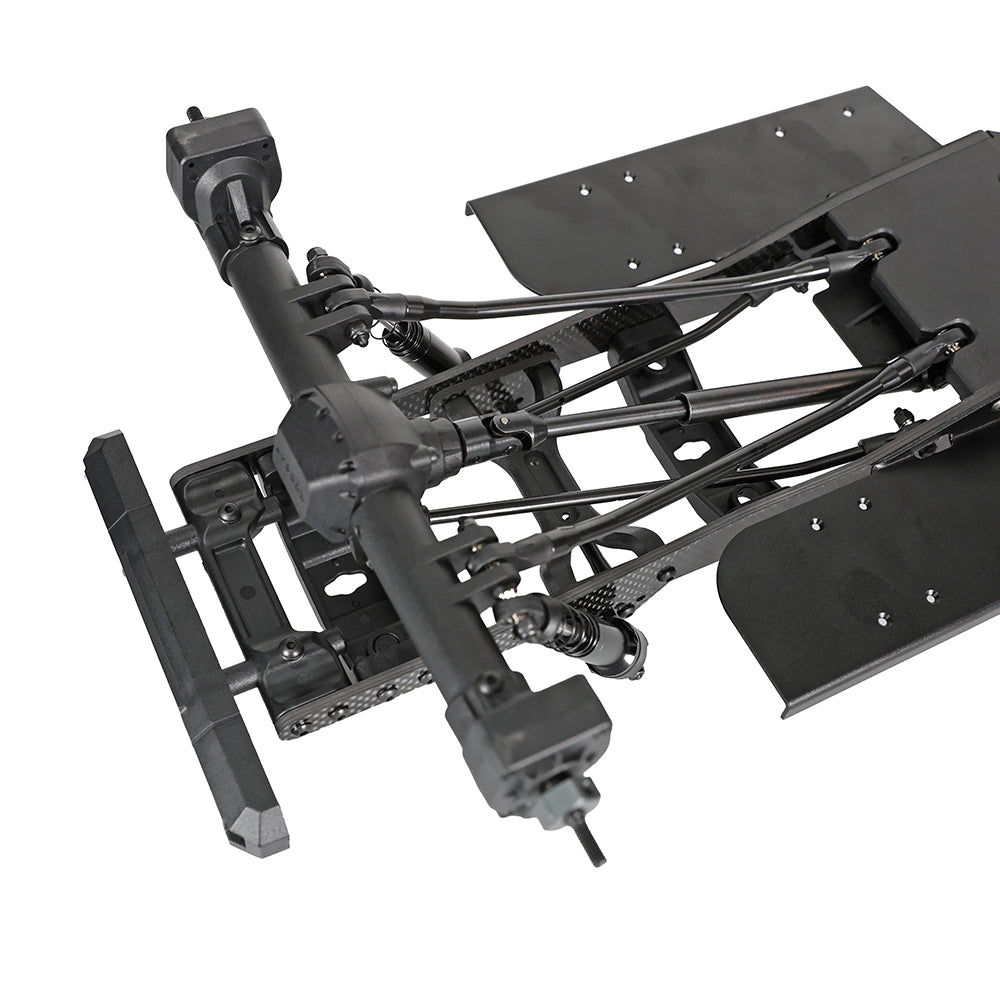

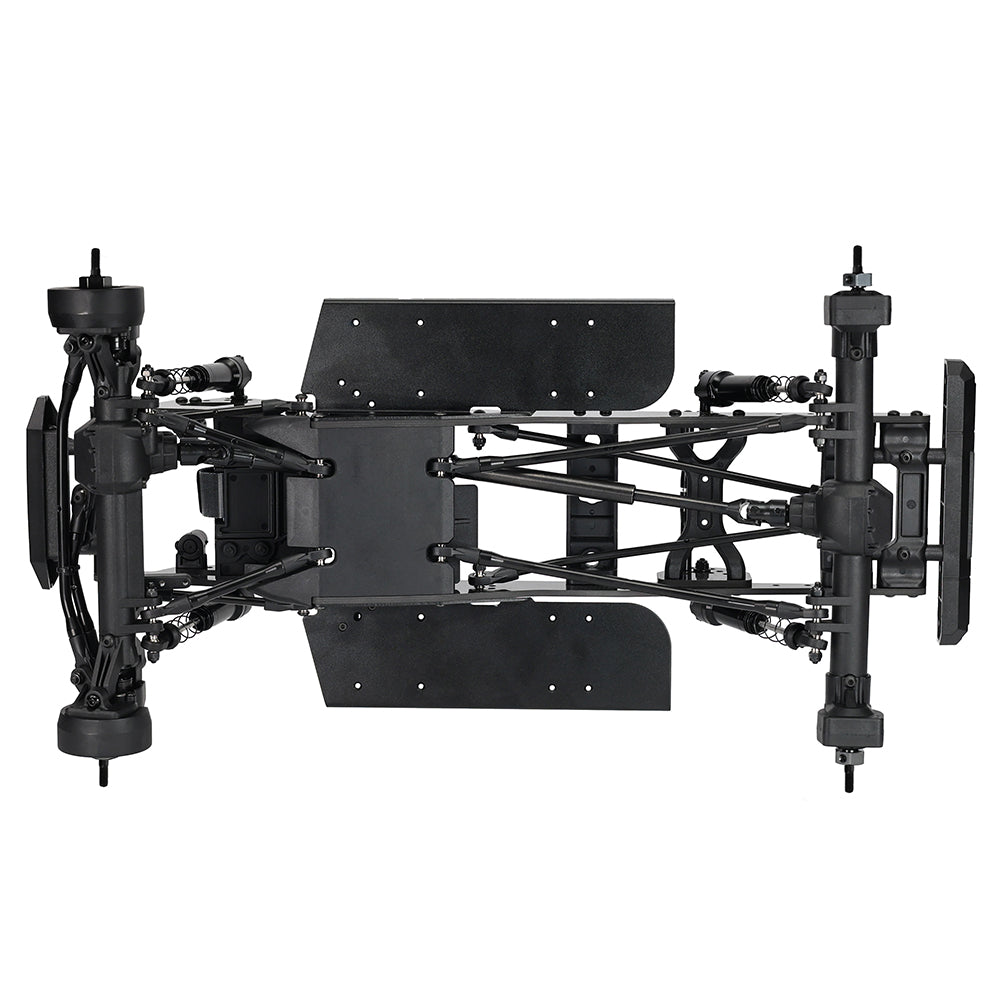

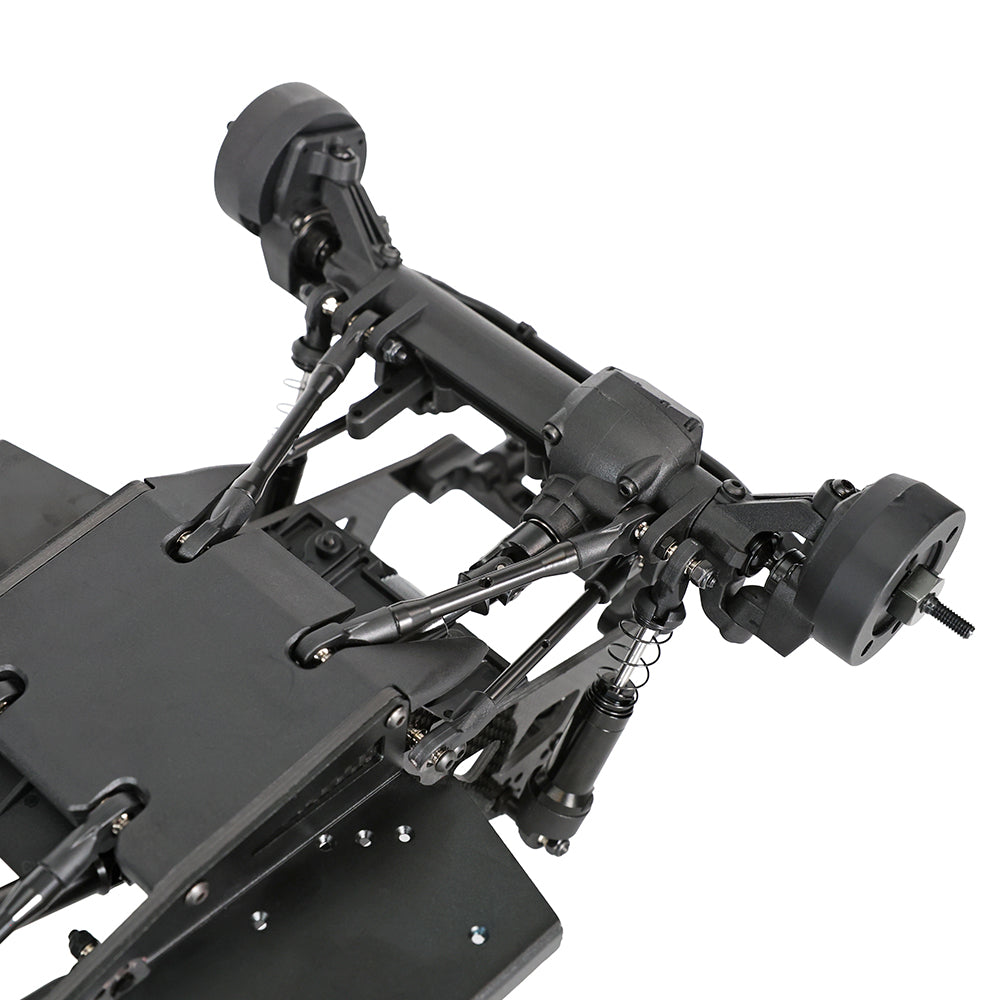

Constructed around a durable 3 mm carbon‑fiber ladder frame , the Vertex‑10 Slider ensures long‑lasting structural integrity and lightweight strength. Carbon‑fiber chassis rails, rear shock towers, transmission end plates, and behind‑the‑axle servo mounts form a rigid foundation for precision crawling. Heavy‑duty portal axles feature a 3:1 gear ratio, high‑position hypoid‑cut ring and pinion gears, and weighted metal front portal boxes for improved traction and balance. Steel front axle tube inserts and aluminum rear inserts optimize weight bias, while the drivetrain’s 20 percent total overdrive provides sharp steering response and confident front‑end pull.

Steering performance is refined through double‑CV joints that enable smooth articulation at extreme angles and high‑steer axles offering a full 58 degrees of steering range . Suspension duties are handled by oil‑filled air‑emulsion shocks with aluminum bodies, delivering consistent damping and terrain adaptability. Splined metal driveshafts maintain a solid connection under load, with angled ends that slide easily over obstacles. Tapered links and high‑clearance rear links ensure smooth suspension transitions and maximum articulation.

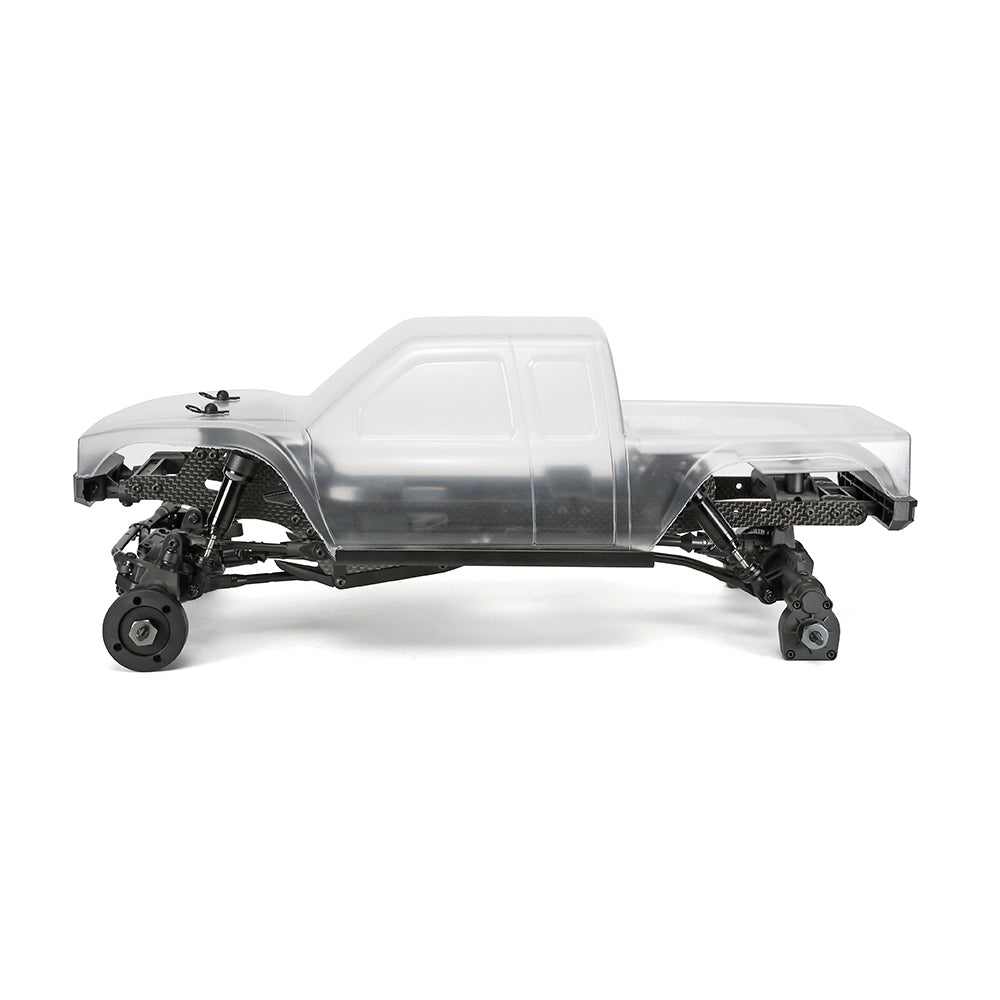

The lightweight, low‑profile body sits 15 mm lower than the Vertex‑10 RTR, reducing the center of gravity and improving handling on steep terrain. Fairlead and LED‑ready bumper mounts are included for easy accessory integration (LED light bar RER43580 sold separately).

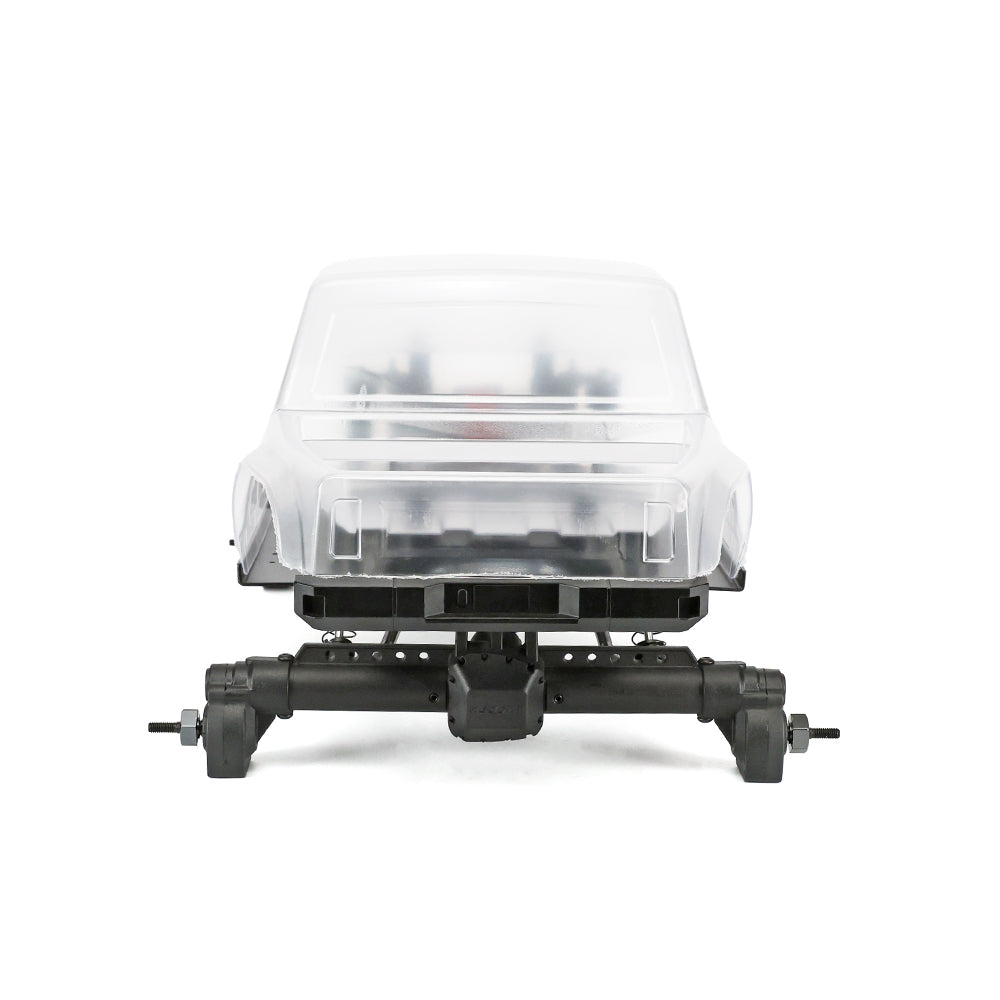

The Vertex‑10 Slider arrives fully assembled as a 1:10‑scale chassis with an unpainted body and decals included , ready for builders to install their preferred electronics and drivetrain components. Required parts include an outrunner‑style motor (36 mm diameter, 31 mm max length), ESC, transmitter and receiver, steering servo (25T, 20–24 mm servo horn included), wheels and tires (4.75 × 1.9 in recommended), vehicle battery, and charger compatible with the chosen battery type. The maximum battery box size is 24 × 27 × 60 mm, and the battery tray accommodates up to 37 × 74 × 28 mm.

Light, agile, and purpose‑built, the Vertex‑10 Slider is aimed squarely at performance—crafted for builders who want to push precision crawling to the next level.
