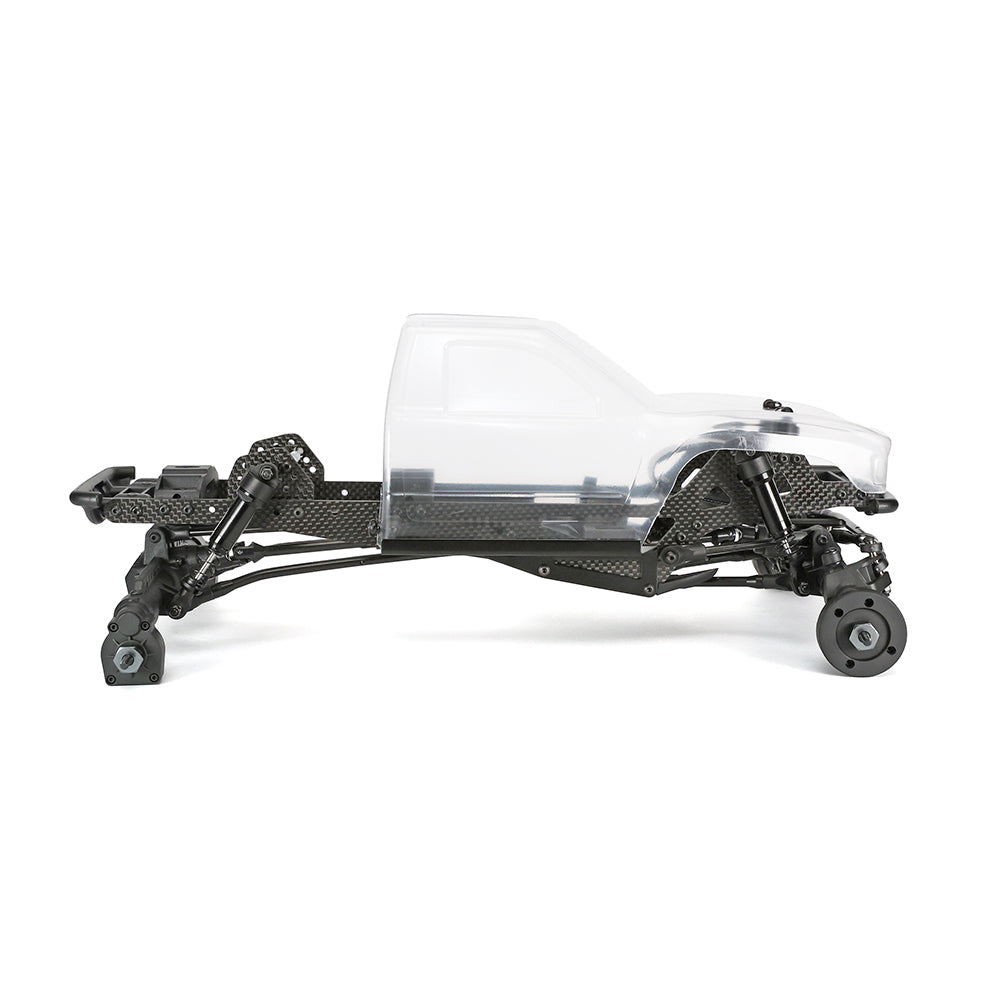

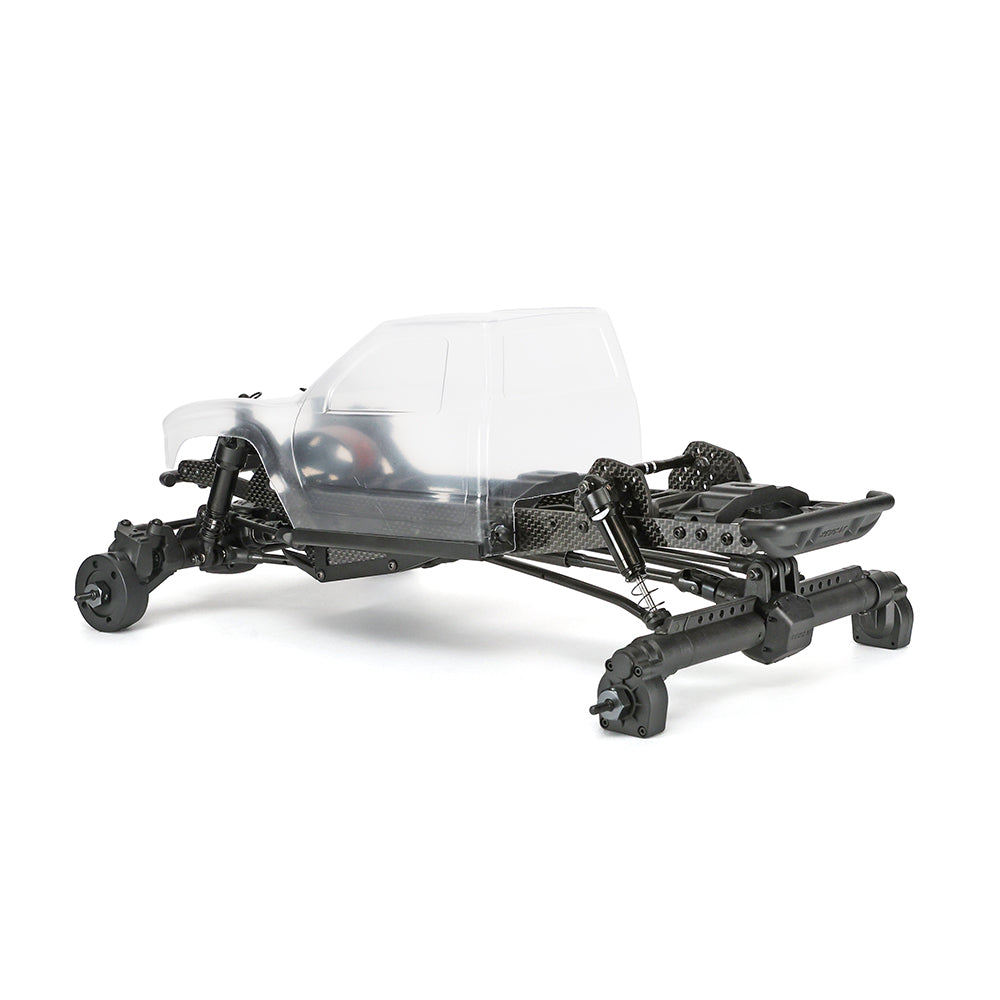

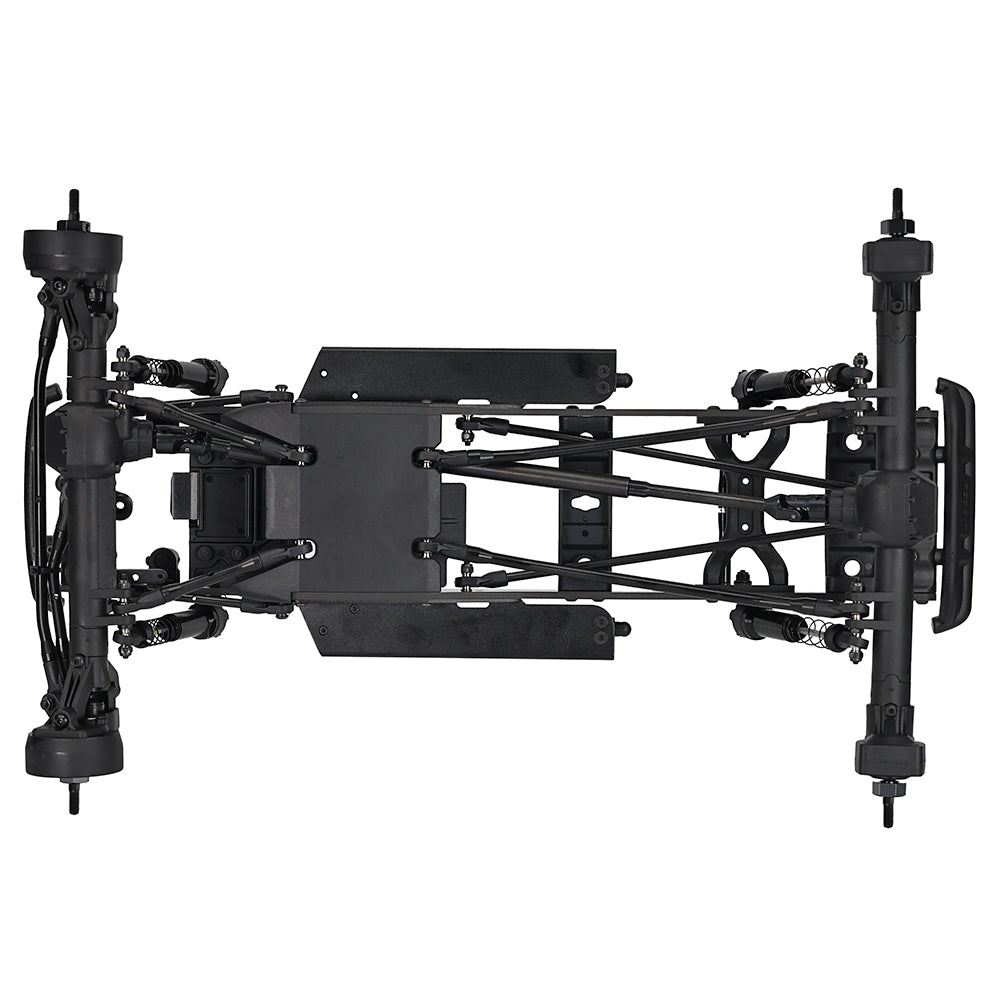

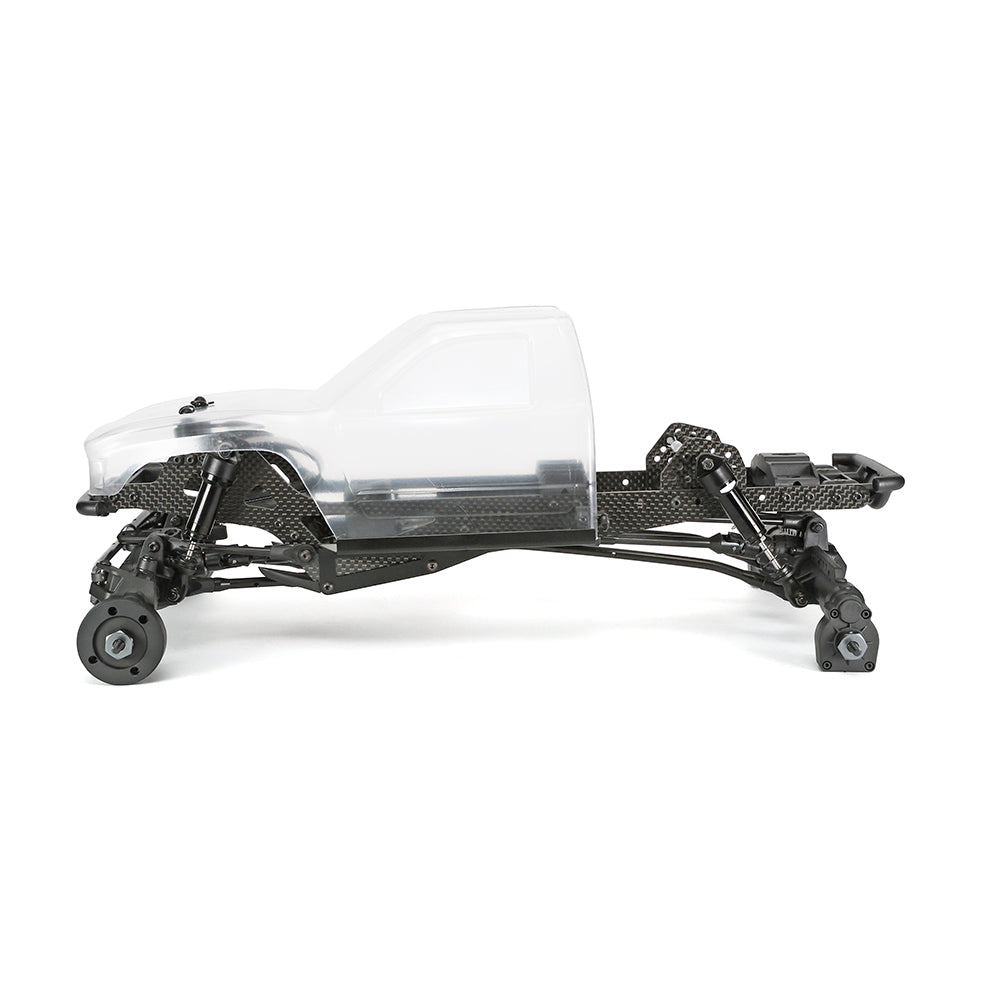

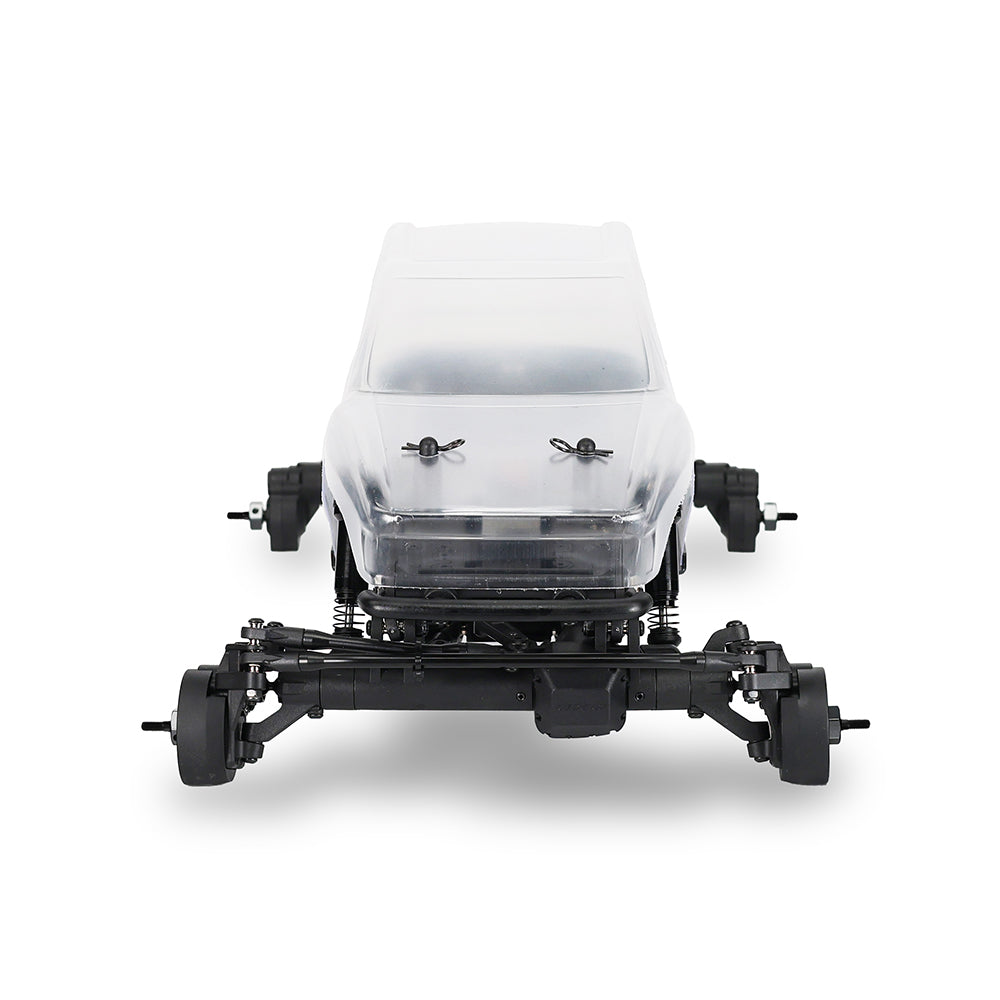

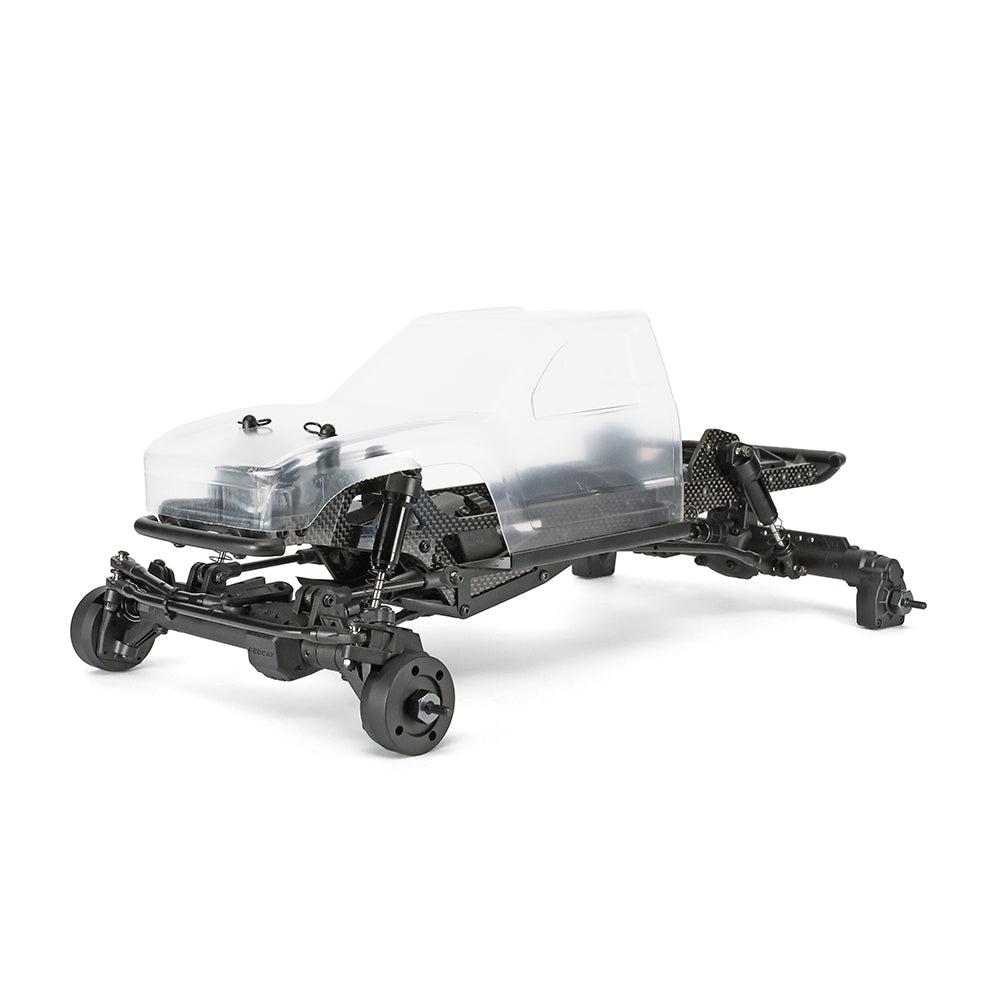

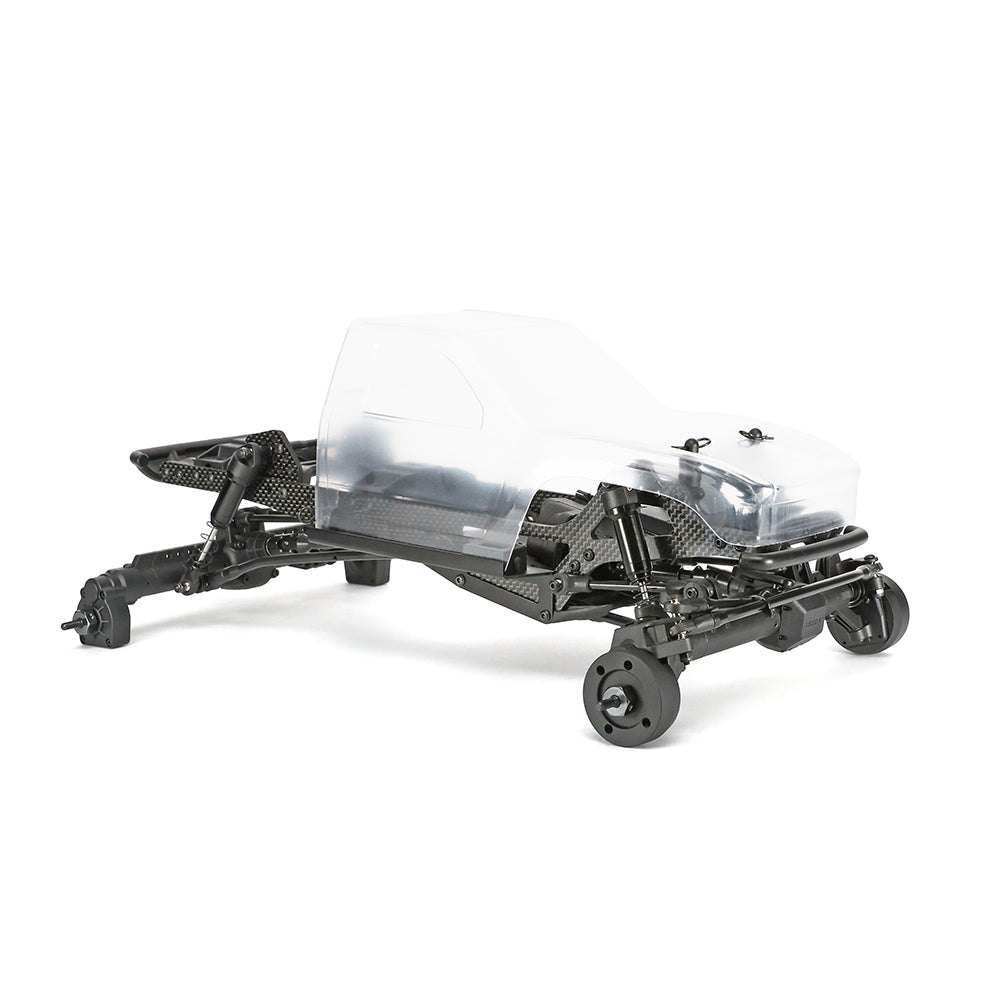

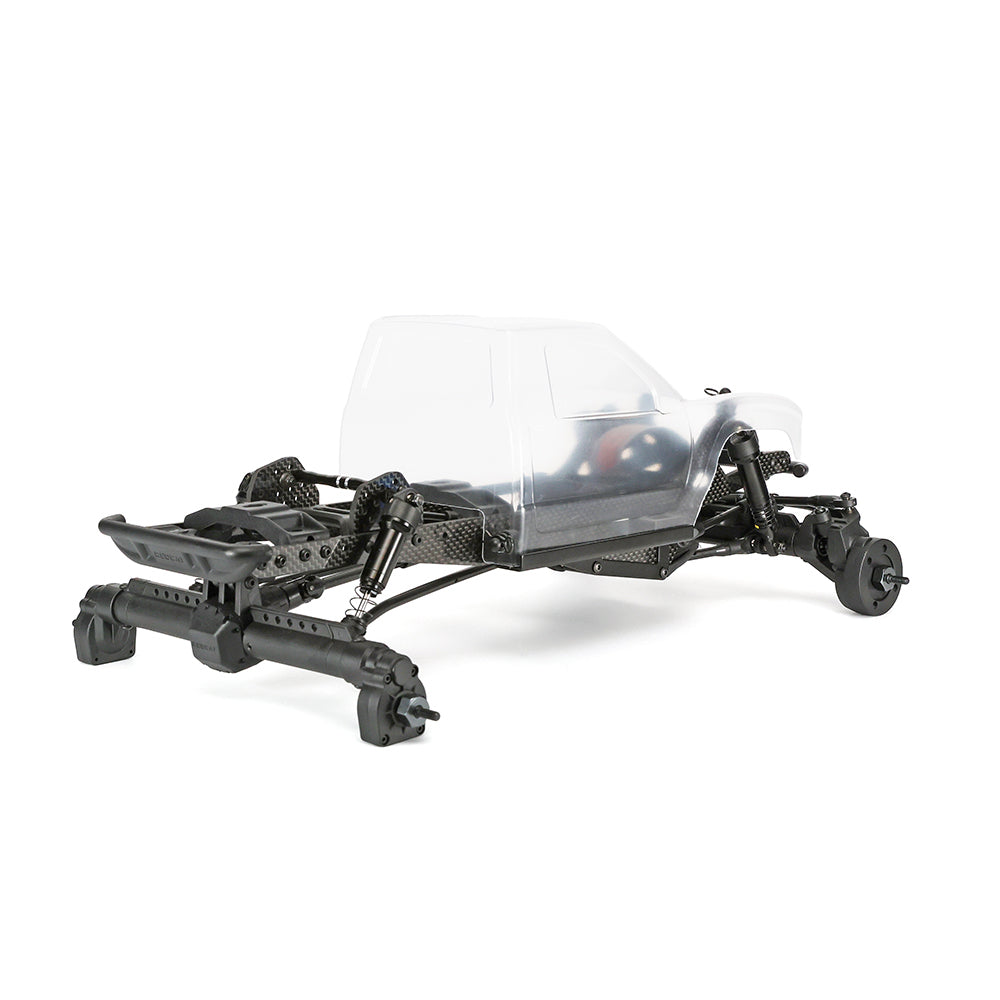

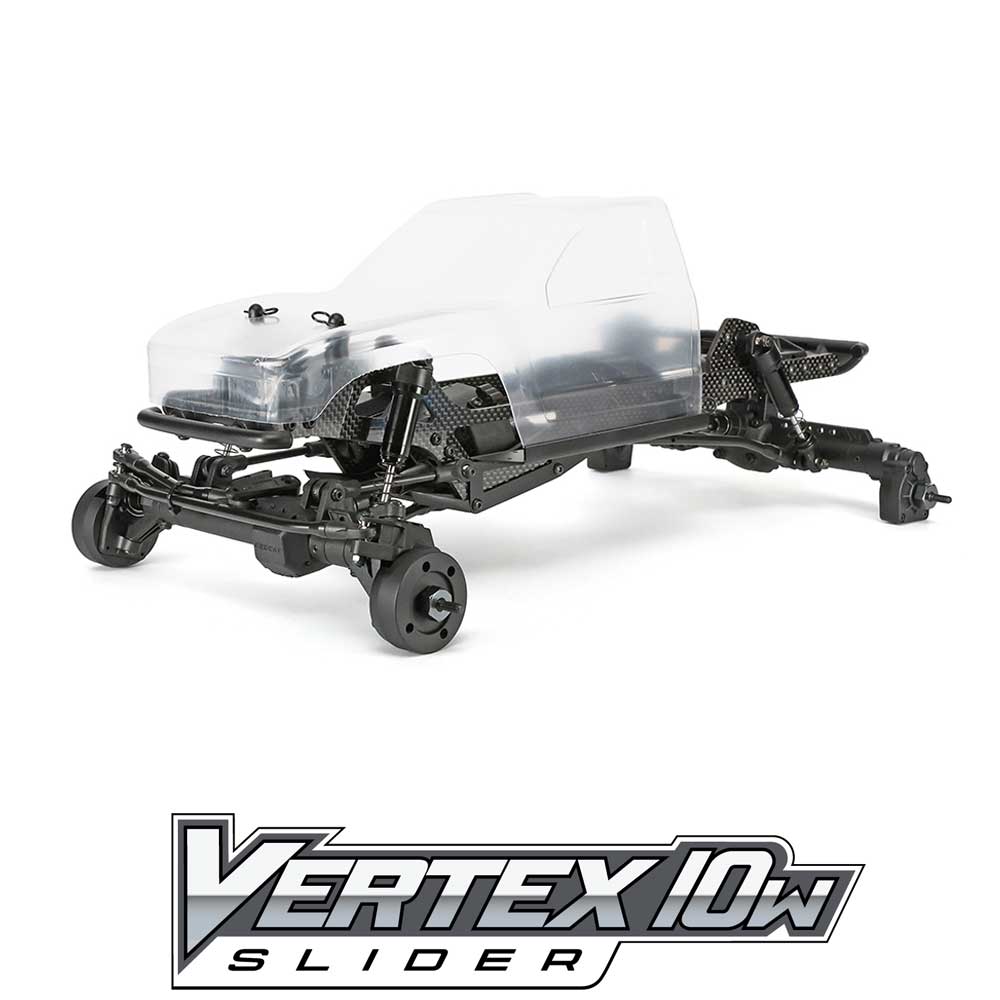

Redcat Vertex-10W Slider - 1:10 Scale Pre-assembled Chassis Kit

The Redcat Vertex-10W Slider features an extended-width stance for increased stability and confidence on challenging terrain, Equipped with high-clearance portal axles, carbon fiber components, and precision steering and lightweight body it's built to conquer tough terrain with confidence and style.

Motor forward configuration, High clearance rear links increase breakover angle and off-road capability, Optional battery mount positions, 10 Degree skid

Multiple battery mounting options support various pack sizes and balance preferences. Durable 3mm ladder frame insures rugged, long-lasting structural integrity

Chassis rails, Rear shock towers, Transmission case end plates, Behind the axle servo mount

Axle width (hex hub to hex hub): 228mm

Front steel internal axle tube inserts, rear aluminium axle tube inserts help with weight bias

High-position hypoid-cut ring and pinion gears

3:1 Portal gear ratio

32% Total overdrive through the ring and pinion

Weighted metal front outer portal box

Double CV joint enables ultra-smooth articulation at extreme steering angles

High-steer axles provide 58 degrees of steering angle

Splined metal drive shafts insure a constant solid connection. Driveshaft ends are angled to easily slide over obstacles.
