BS218-014RR
BS218-014RR
Redcat Racing

BS218-014RR

RC Parts, Accessories, Hopups and Batteries

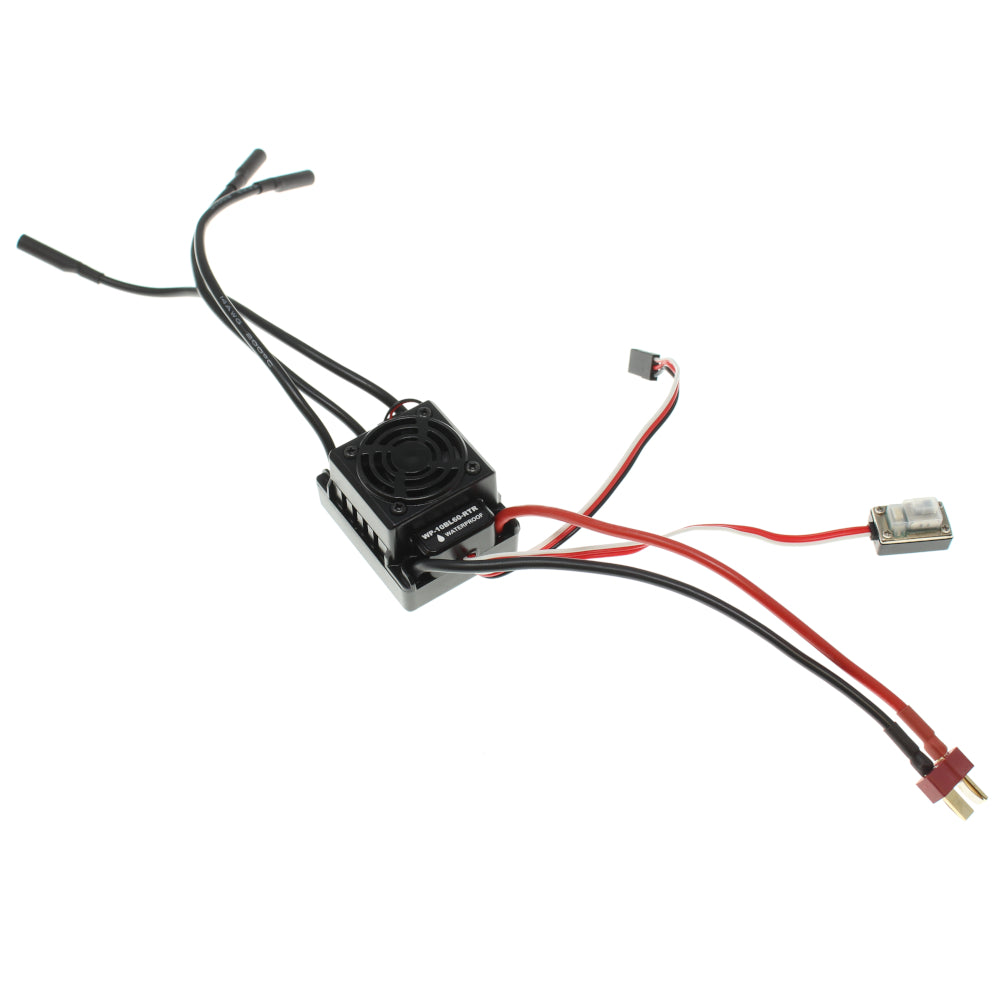

HobbyWing 60A Brushless Speed Control (Sensorless)(Long Switch Wire)(1pc)

$74.99

icon

Earn a minimum of Redcat Rewards Points

Show Vehicle Compatibility
BLACKOUT SC, BLACKOUT SC PRO, BLACKOUT XTE, VOLCANO EPX/EPX PRO, BLACKOUT XBE, BLACKOUT XBE PRO, BLACKOUT XTE PRO
Overview
HobbyWing 60A Brushless Speed Control (Sensorless)(Long Switch Wire)

ESC with extended switch wire for mounting in Blackout XBE but will work in most other vehicles as well.

Splashproof

Deans Connector/T-Plug

WARNING: These Electronics CAN NOT be submerged!

Specifications:

Maximum continuous current: 60A

Maximum burst current: 390A

Input: 2-3S LiPO***, 4-9 cell NiCD/NiMH***

Motor limit (2S LiPO, 4-6 cell NiCD/NiMH): 4500kv

Motor limit (3S LiPO, 7-9 cell NiCD/NiMH): 3500kv

BEC: 3A/6V switching type

Dimensions: 48.5*38*32mm

Weight: 90g

Motor Plugs: 4mm female bullet

Battery Plug: Deans/T-Plug

***Only 2S LiPO or 6-7 cell NiMH/NiCD battery packs are recommended for Redcat Racing vehicles that use this ESC. Using more voltage than what we recommend will void all warranties and is at your own risk!***
